Wincomm Computers

High Performance Digital Signage Engines

Wincomm is one of Taiwan’s leading manufacturer of industrial computer and embedded computer products. Wincomm designs and develops all-in-one panel PC, large size all-in-one digital signage system, rugged box PC and embedded software products for a broad range of industries and applications. Wincomm aims to provide hardware and software integrated solutions for the most variant environments such as industrial automation/ human machine interface control, digital signage / infotainment Kiosk, and medical computing.

Wincomm has proven its outstanding reliability with Australian digital signage installations such as the Val Morgan Advertising network used around Australia.

Rackmount, Fan and Fanless Options

The Wincomm digital signage computers are an industrial grade design that provides longevity, reliability and if required, parts back up.

The designs are suitable for rack mounting, wall mounting, installation behind screens, desk location or will meet other requirements if needed.

The range of Wincomm Digital Signage computers allows you to select a model that is suitable for your requirements, whether it is high power, or fanless, a suitable and reliable solution is available for your digital signage requirements.

Need more information?

For any questions about how a Command Digital Signage System would be suitable for your business or to arrange a time for an on-site or on-line demonstration, please contact us on 1300 780 204 or through our enquiry form.

Command products and solutions are also available through your local AV and IT professionals.

WPE-793
WPE-796
WPE-791
WPA-780A Fanless
WPA-780F
Gallery

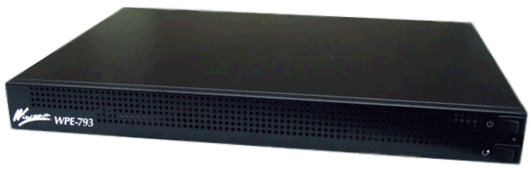

Wincomm WPE-793

Intel X2Q/C2D Signage Player PC.
Rack mount chassis form factor with 1RU height.
Rugged SECC metal housing.
Intel high performance Core 2 Duo and Core 2 Quad processor.
Mainbord design with Intel Q35 + ICH9 chipset, 1333MHz FSB & socket LGA 775.
4GB maximum memory for dual-channels DDR2-800 DIMM
Extra add-on options of wireless LAN kit and rack-mount kit.

Processor	Intel Core 2 Duo E8400 3.0GHz (Optional Core2 Quad)
RAM	4GB Maximum
Graphics	Integrated Intel Graphics Media Accelerator 3100 (Optional Dual Output Available)
HDD	80GB SATA II HDD
Expansion	Mini-PCI-e, PCI-e (x16), PCI-e (x1)
I/O Interface	USBx4, RS232, RS232.422.485, LANx2, VGA, DVI-D
Dimensions (W x H x D)	430 x 44.5 x 300mm (approximate)
Weight (Net)	5.5kg
Mounting Methods	Rack Mount (1RU), Desktop, Wall Mount
Special Features	Watchdog

Wincomm WPE-796

Powerful Digital Signage Engine Box
Supports 1920x1080, HDTV content and 3D application
Compact and low noise design
1U rack design
Intel Q57 PCH Platform
Intel Core i3/i5/i7 CPU support
19" Rack Mount or Wall Mount
Extra add-on options of wireless LAN kit and rack-mount kit.

Processor	Intel Socket LGA supporting Core i3/i5/i7
RAM	DDR3 1066/1333 8GB Maximum
Graphics	Integrated Intel Graphics (optional Video Card available)
HDD	160GB SATA II 2.5" HDD
Expansion	Mini-PCI-e, PCI-e (x16), PCI-e (x4)
I/O Interface	USBx3, RS232, RS232/422/485, LANx1, DVI-I
Dimensions (W x H x D)	381 x 44.5 x 279 mm (approximate)
Weight (Net)	5kg
Mounting Methods	Rack Mount (1RU), Desktop, Wall Mount

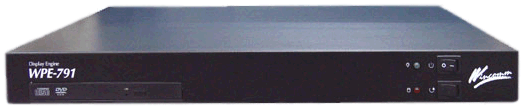

Wincomm WPE-791

Intel Pentium M 1.8GHz processor.
Rack mount chassis form factor with 1RU height.
Rugged SECC metal housing.
Mainbord design with Intel 915GM + ICH6M chipset, 533 MHz FSB & socket 479..
1GB maximum memory for dual-channel DDR2-533 DIMM.
Extra add-on options of graphics card, wireless LAN kit, dual LAN card, TV/video capture card and rack-mount kit.

Processor	Intel Pentium M 745 1.8 GHz (Optional Celeron M 370 1.5GHz / Socket 479)
RAM	1GB Maximum, dual channel, DDR2-533 DIMM, slot x 1
Graphics	Integrated Intel Graphics Media Accelerator 900 (Optional Dual Output Available)
HDD	80GB SATA II HDD
Expansion	Mini-PCI, PCI (or PCI-e)
I/O Interface	USBx4, PS/2, RS232, LAN, VGA (Optional DVI-D)
Dimensions (W x H x D)	430 x 44.5 x 300mm (approximate)
Weight (Net)	5.2kg
Mounting Methods	Rack Mount (1RU), Desktop, Wall Mount
Special Features	Watchdog

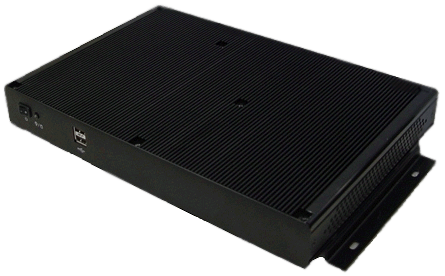

Wincomm WPA-780A Fanless

Fanless design for up to 40 degree C ambient operating temperature.
Ultra compact A4 size dimensions with only 38mm height.
Rugged metal housing with external fin-like heat sink top and bottom cover.
AMD Athlon 64 x@ dual Core 1.8 GHz processor
Integrated high performance ATI Radeon HD3200 graphics core with sideport memory.
Mainboard design with AMD 780E + SB710 chipset, 800 MHz FSB and socket AM2.
3GB maxijum memory for dual-channels DDR2-800 SODIMM.
SATA II HDD and optional HDMI output.
Extra add-on options of mini PCI-e wireless LAN kit.

Processor	AMD Athlon 64 X2 3400e 1.8GHz, (Optional Athlon 64 2600+ 1.6GHz/AMD AM2 socket)
RAM	4GB Maximum
Graphics	Integrated ATI Radeon HD3200 with 128 MB GDDR3 memory
HDD	80GB SATA II HDD
Expansion	Mini-PCI-e
I/O Interface	USBx6, RS232/422/485, LAN, DVI-I
Dimensions (W x H x D)	295 x 38 x 200mm (approximate)
Weight (Net)	4.5kg
Mounting Methods	Desktop, Wall Mount
Special Features	Watchdog

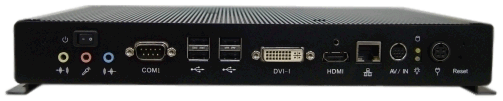

Wincomm WPA-780F

Ultra compact A4 size dimensions with only 38mm height.
Rugged metal housing with external fin-like heat sink top and bottom cover.
AMD Athlon 64 x@ dual Core 1.8 GHz processor
Integrated high performance ATI Radeon HD3200 graphics core with sideport memory.
Mainboard design with AMD 780E + SB710 chipset, 800 MHz FSB and socket AM2.
3GB maxijum memory for dual-channels DDR2-800 SODIMM.
SATA II HDD and optional HDMI output.
Smart fan design with variable speed control.
Extra add-on options of mini PCI-e wireless LAN kit.

Processor	AMD Athlon 64 X2 4200+ 2.2GHz, (Optional Athlon 64 X2 3600+ 1.9GHz/AMD AM2 socket)
RAM	4GB Maximum
Graphics	Integrated ATI Radeon HD3200 with 128 MB GDDR3 memory
HDD	80GB SATA II HDD
Expansion	Mini-PCI-e
I/O Interface	USBx6, RS232/422/485, LAN, DVI-I
Dimensions (W x H x D)	295 x 38 x 200mm (approximate)
Weight (Net)	4.5kg
Mounting Methods	Desktop, Wall Mount
Special Features	Watchdog
