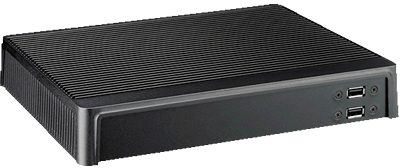

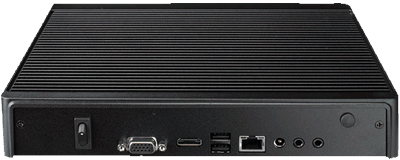

Nexcom NDiS 125L

NDiS 125L digital signage player is powered by 1.8GHz Intel® Atom™ D525 Dual Core processor. This advanced Intel® based technology boasts 50% better performance than the previous generation of Atom™ N270 CPU, with only a small increase in power consumption. Equipped with NVIDIA ION2 GPU, the NDiS 125L Atom player is capable of supporting 1080P video playback. NDiS 125L is housed in a maintenance-free fanless chassis which reduces moving parts and therefore increases component life span. Users thus benefit from a lower TCO (Total Cost of Ownership) yet industrial grade reliability.

Processor	Intel® Atom™ Dual Core D525 1.8GHz CPU onboard
RAM	1 x SO-DIMM, DDR3 800, up to 4GB
Graphics	NVIDIA ION2
HDD	80GB SATA II HDD
Expansion	VGA, HDMI, 2 x USB, RJ45, 1 x Audio-out
I/O Interface	USBx4, RS232, RS232.422.485, LANx2, VGA, DVI-D
Dimensions (W x H x D)	250 x 40 x 195 mm
Weight (Net)	4.5kg
Mounting Methods	Desktop, Wall Mount

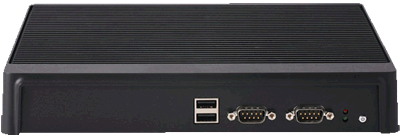

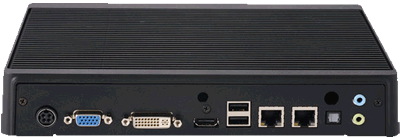

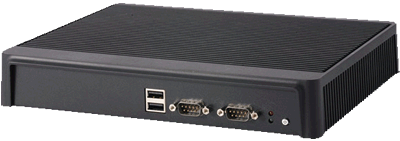

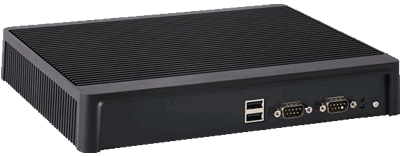

Nexcom NDiS 166

NDiS 166 Sandy Bridge player is a powerful digital signage player which is built around the superb technology of Intel® Core™ i5/i7 processor series and QM67 integrated graphics controller. The fanless NDiS 166 1080P signage player is capable of offering impressive system performance and can easily support dual full-HD video. NDiS 166 is an advanced digital signage player which fully satisfies customer's expectation of dual display with 1080P video support that assures outstanding playback ability.

Processor	2nd generation Intel® Core™ Processor Family
RAM	2x DIMM, DDR3 1066/1333 MHz up to 8GB
Graphics	Intel® Integrated Graphics
HDD	80GB SATA II HDD
Expansion	1 x Mini-PCIe for optional wireless LAN module, 1 x Mini-PCIe for optional TV tuner module
I/O Interface	VGA, DVI, HDMI, 2 x USB, 2 x RJ45, 1 x SPDIF, 2 x Antenna hole for Wi-Fi and TV tuner
Dimensions (W x H x D)	250 x 40 x 194mm
Weight (Net)	5.0kg
Mounting Methods	Desktop, Wall Mount
Special Features	Watchdog

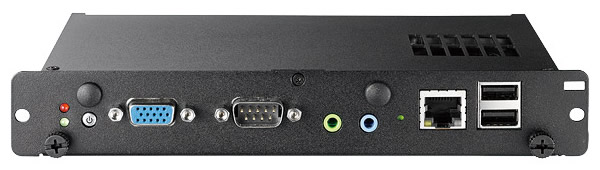

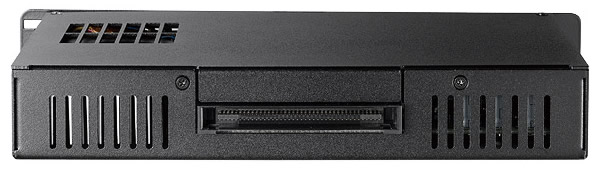

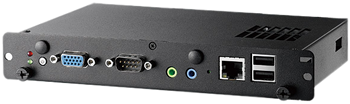

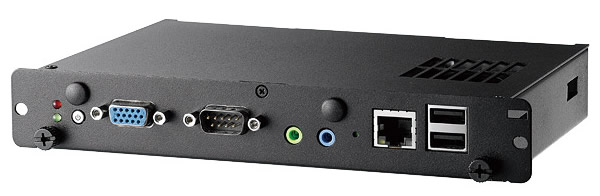

Nexcom NDiS OPS M50

NDiS OPS M50 is specifically designed to be compliant with OPS (Open Pluggable Standard). NDiS OPS-M50 provides COM Express architecture slot with optional COM Express Type II module scalability, slide in 2.5" SATA Slim SSD for storage. NDiS OPS M50 operates on the high performance Intel® Core™ i5-2515E Dual Core processor. The NDiS OPS M50 is a powerful media player for digital signage application displaying high impact content in a compact size and perfect match with panel.

Main Features

Embedded Intel® Core™ i5 2515E Dual Core processor
Intel® HD integrated graphics 3000
Designed compliant with open pluggable standard
COM Express architecture, easy scalability
Slot-in integration, easy maintenance
Supports HDMI, DP, UART, and USB2.0 via JAE 80-pin connector
TV tuner/ WLAN support

Processor	Onboard Intel® Core™ i5-2515E Dual Core processor
RAM	1 x 204 pin SO-DIMM socket, support DDR3 800/ 1066/ 1333MHz (Single channel) with un-buffered and non-ECC SDRAM up to 4GB
Graphics	Intel® HD graphics 3000 with Intel dynamic video memory allocation
HDD	1 x 22pin SATA right angle connector for slide in 2.5" SATA slim SSD
Expansion	2 x Mini-PCIe for optional WLAN/ TV tuner module Support wake on WLAN feature
I/O Interface Rear	Standard connector type: JAE TX25 Plug Connector Power input: 12V~19V 1 x TMDS / 1 x UART / 3 x USB Port Audio: Line-out L/R Control signals: power status / PS_ON / PB_DET / CEC / SYS_FAN
I/O Interface Rear	1 x Power status LED (Green) 1 x HDD status LED (Yellow) 1 x Power button 1 x Reset button 1 x DB9 for RS-232 2 x USB port 1 x Audio Line-in 1 x Audio Line-out 1 x VGA port (DB15) 1 x RJ45 with LEDs for 10/100/1000Mbps Ethernet 2 x Antenna hole for Wi-Fi or TV tuner module
Dimensions (W x H x D)	200mm x 30mm x 119mm
Weight (Net)	5.0kg
Mounting Methods	OPS - Open Pluggable Standard
